Home / Products / Nonwoven Fabrice For Building Construction / Window tape / Windows Tapes(Breathable)
Window tape
Jiangsu Aotelong New Materials Co., Ltd.

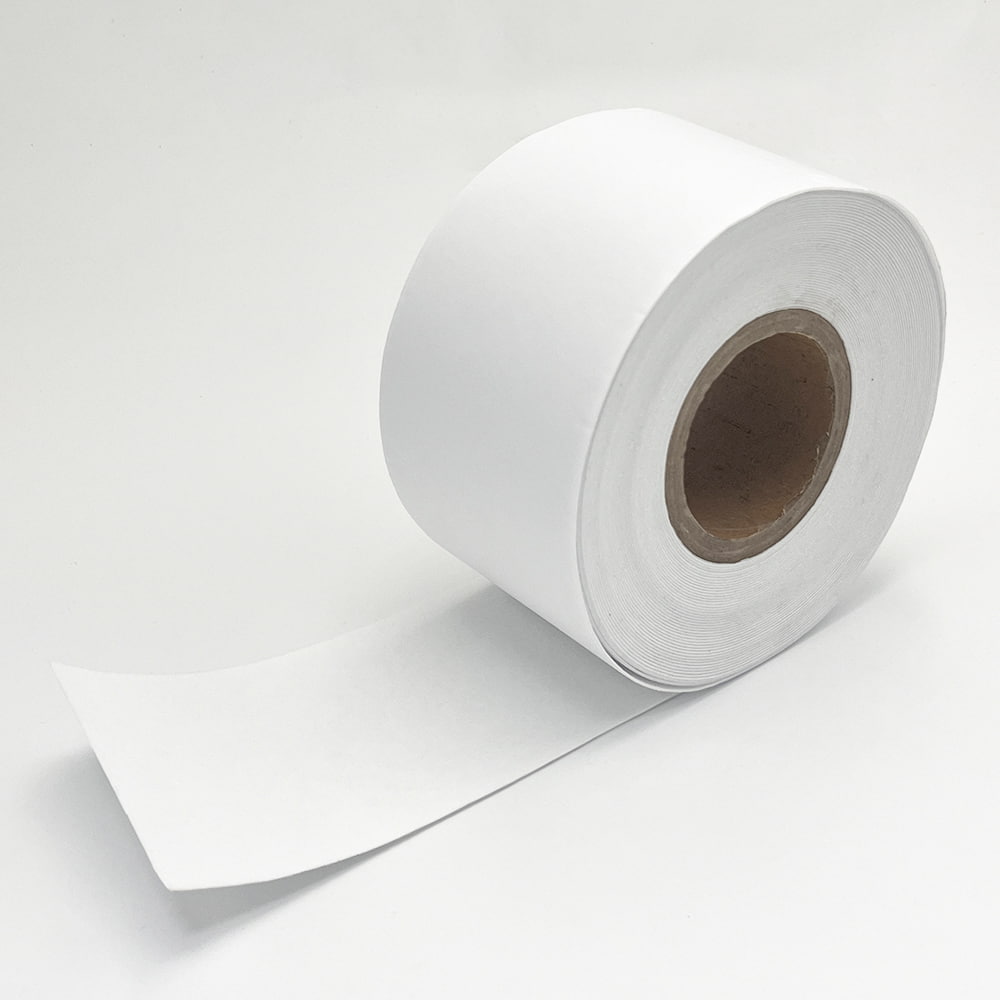

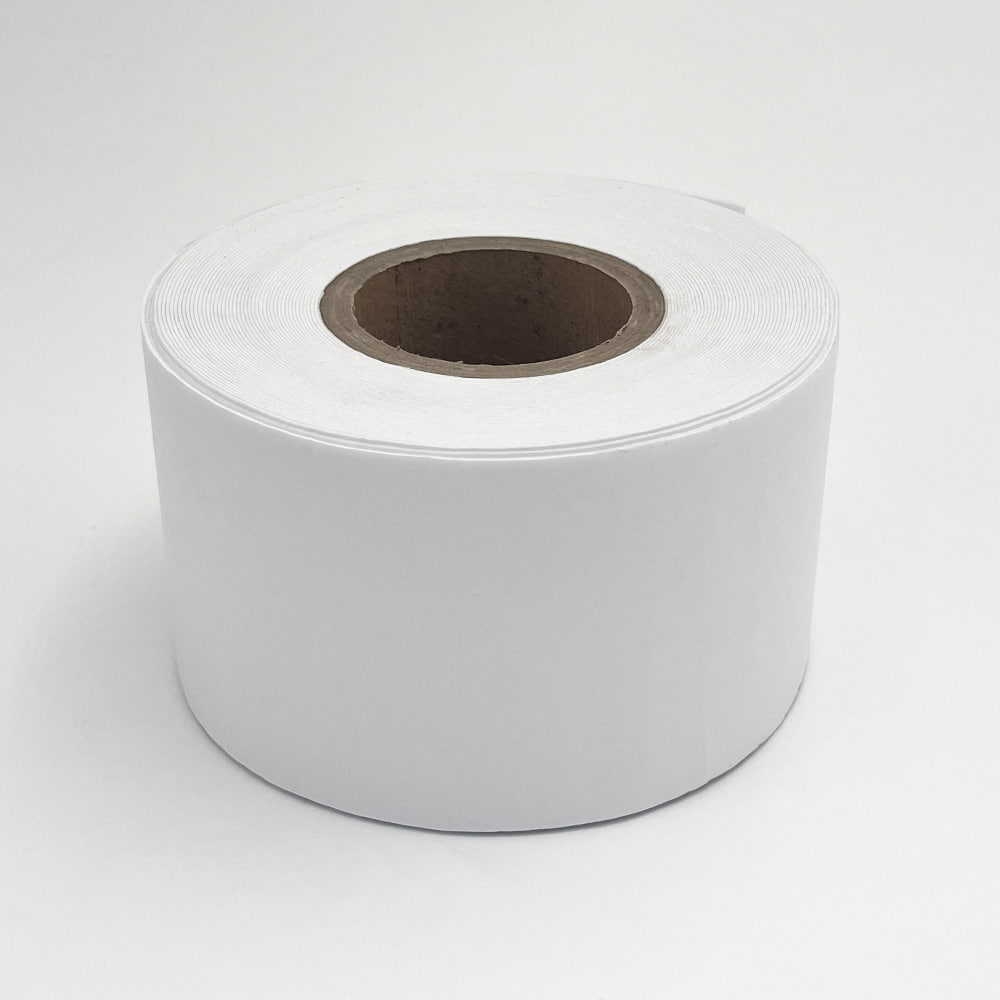

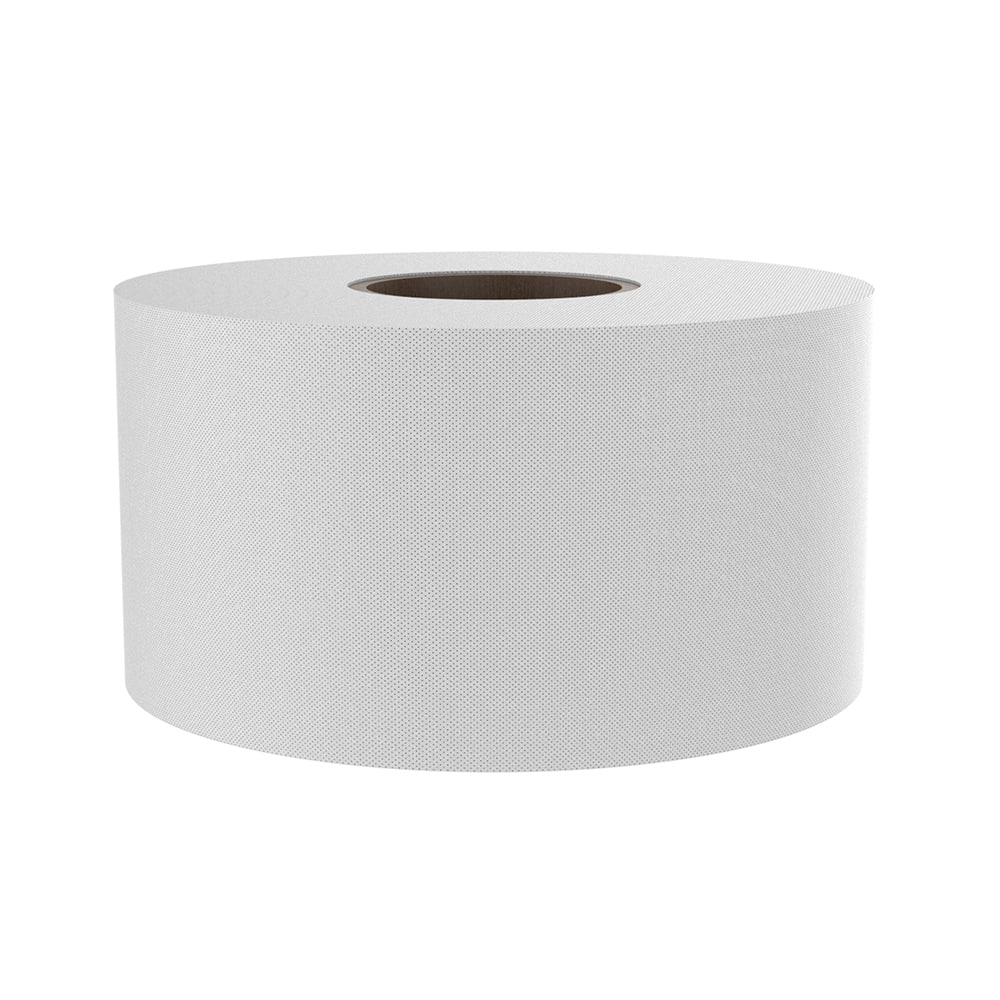

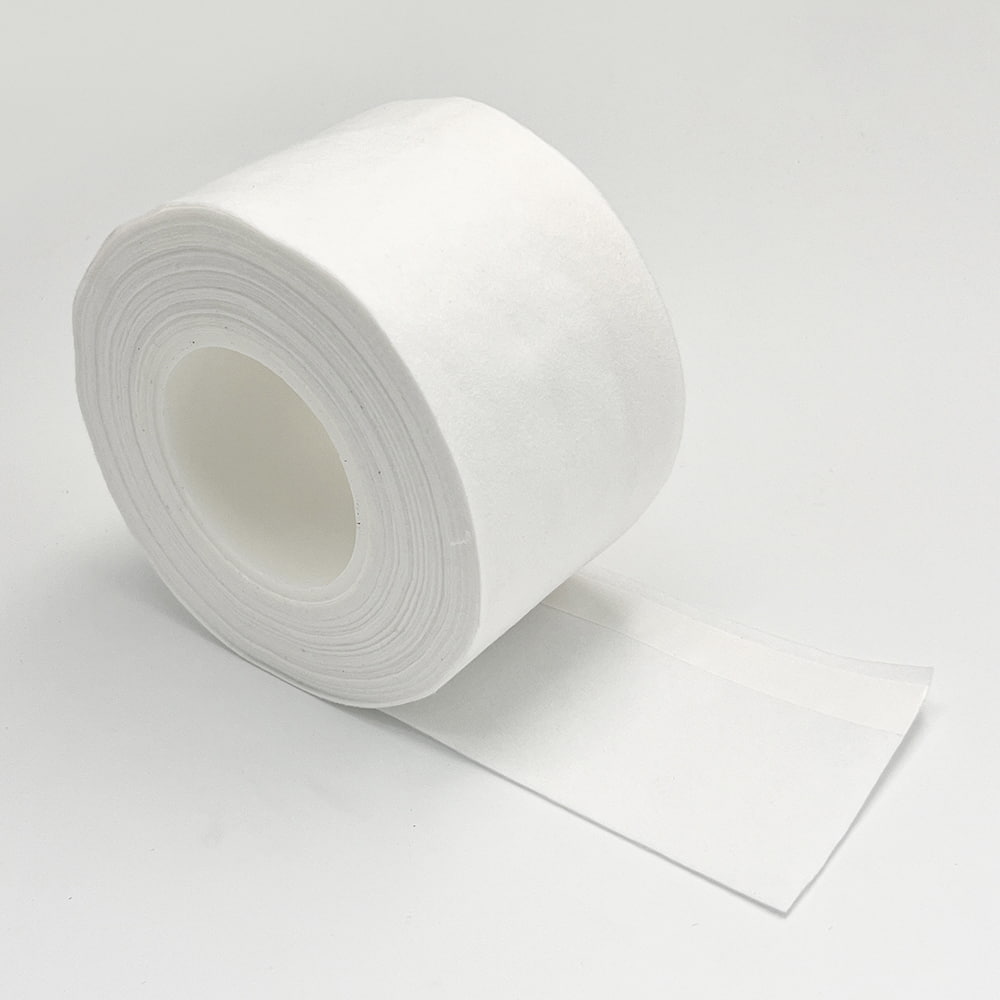

Windows Tapes(Breathable)

The waterproof and vapour permeable membrane is a soft, high-strength, high tenacity special waterproof raincover, flexible in use, easy to install, and its unique waterproof and vapour permeable can make the building's energy saving, durability and comfort are well improved.
It is a key component to ensure the airtightness of doors and windows and to prevent the wall from condensation and mould, and can be used for the airtightness treatment of doors, windows, panels, pipelines and the combination of steel components and walls on the outdoor side of the building, and it can be used in conjunction with the special adhesive DP-HD200/210/220.

Get A Quote Contact Us

NEXT:
Product Details

1. Functions with storm-proof, waterproof, windproof, penetrate water vapour, prevent wall mould.

2. Good elasticity, high longitudinal tensile strength, high toughness, able to resist the deformation displacement generated by the structural elements and not be destroyed, can be used in corners.

3. Excellent self-peeling strength, not easy to delamination itself.

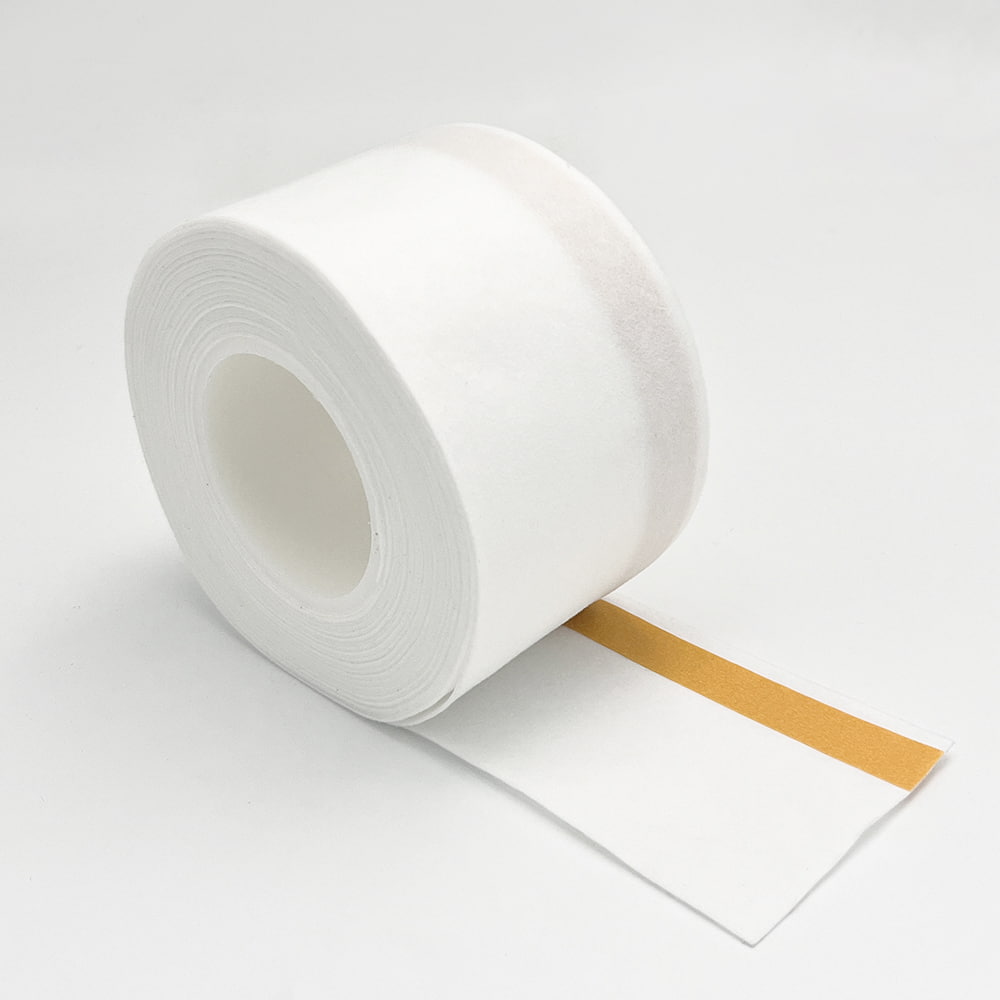

4. One side comes with 20mm wide strong self-adhesive, low temperature and aging resistance.

5. High-strength and ageing-resistant plush fabric base, good adhesive absorption, and close fusion with cement mortar.

Material

 Vapour Breathable Diffusion Impermeable Synthetic Fleece

Weight Per Unit Area

 Approx. 200 g/m²

Temperature Stability Range

 Approx.-40˚C to +80˚C

Handling Temperature

 +5˚C to Approx. +45˚C

Maximum Tensile Force Longitudinal/Transverse

 550 N/ 240 N

Outdoor Weathering

 12 Weeks

Suitability as Temporary Covering

 3 Months

UV Resistance

 3 Months

Dimensions

 10 x 300 cm （Or Custom）



No. Inspection Test Report Refer to Standard Inspection Result Single Assessment
1  Thickness, mm ≤0.7 0.68  Qualified
2  Mass area ratio,g/m² ≤200 153  Qualified
3  Tensile Breaking Strength, N/50mm Vertical ≥450 527  Qualified
Horizontal ≥130 228  Qualified
4  Elongation at Break,% Vertical ≥20 39  Qualified
Horizontal ≥80 86  Qualified
5  Moisture Permeability,g/(m² · s · Pa) ≥4.0×10-⁷ 1.7×10-⁶ Qualified
6  Wet Resistance Factor ≤9.0×10² 1.7×10² Qualified
7  Water Vapor Diffusion Resistance Sdvalue, m ≤0.5  0.1  Qualified
Industry Applications
